| UVC LED |
|
| 3535、3939 D系列 | |
|
|
|
波段范围: 200-280nm Bandrange: 200-280nm |
|
|

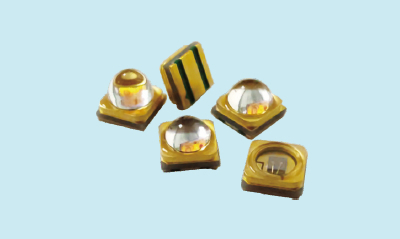

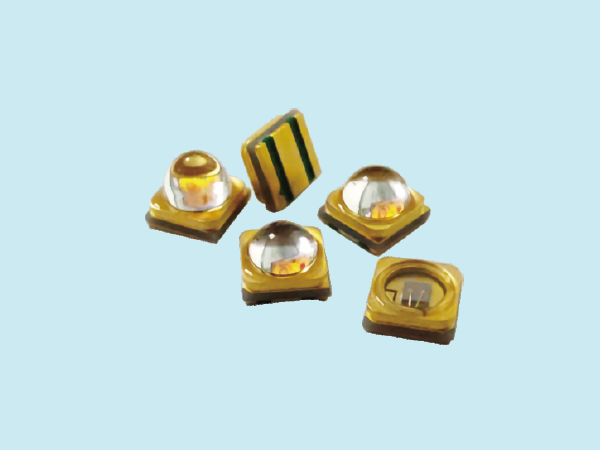

3535、3939 D系列是深紫外线UVC LED，大部分采用单晶小功率封装为主，发光角度分别有30°、60°、90°、120° 3535、3939D series is a deep ultraviolet UVC LED, most of the use of single crystal small powei package,light Angle of 30°、60°、90°、120° |
|
| 特性 Features | 应用 Application | |
| 高光效 High luminous efficiency | 水处理 Water treatment | |
| 高可靠性 High reliability | 空气净化 Air purification | |
| 功耗低 Low power consumption | 表面消毒 Surface disinfection | |
| 长寿命 Long lifespan | 医疗卫生 Medical and health care | |
| 多种波长选择 Multiple wavelength options | 家用电器 Household Electric Appliances | |
| / | 仪器探测 Instrument detection |
| 光电特性 Photoelectric characteristic |
| λp( nm ) | Po( mw ) | VF( V ) | IF( mA ) | Angle ( ° ) |
| 255nm | 12-17mW | 6.0-6.5V | 100mA | 30°/60°/120° |
| 265nm | 12-20mW | 5.5-6.0V | 100mA | 30°/60°/120° |
| 270nm | 13-18mW | 6.5-7.0V | 100mA | 30°/60°/120° |
| 280nm | 18-22mW | 5.5-6.0V | 100mA | 30°/60°/120° |
可根据客户要求选用不同芯片波段封装

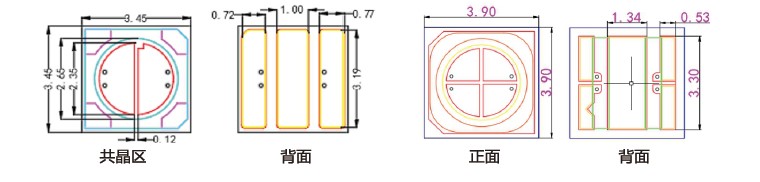

| 尺寸规格 Dimension: 3535 & 3939 |
|
