| UVA LED |
|

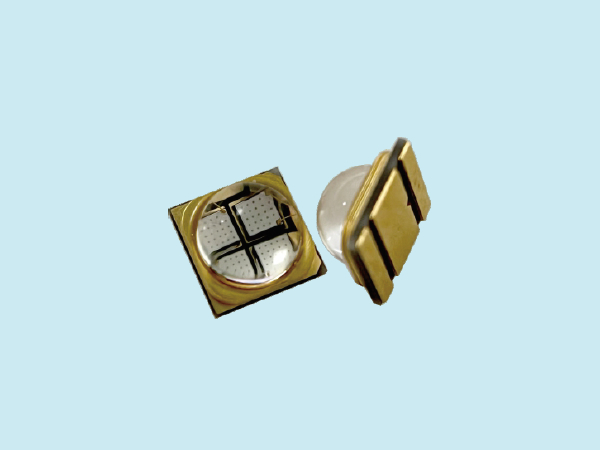

| 6868 四芯A系列 | |
|
|
|
波段范围: 320-410nm Bandrange: 320-410nm |
|
|

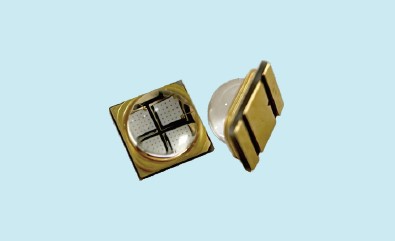

6868四芯A系列是紫外线大功率UVALED，采用四颗芯片组合封装，高功率发射，发光角度分别有60°、90° 6868 four-core A Series is a high-power UV UVA LED, using four chip combination package, high-power emission, light Angle of 60°、90° |
|
| 特性 Features | 应用 Application | |
| 高光效 High luminous efficiency | 生物医学工程 Bio-medical engineering | |
| 高可靠性 High reliability | 紫外线固化 UV curing | |
| 功耗低 Low power consumption | 分析仪器 Analytical instruments | |
| 长寿命 Long lifespan | ||
| 多种波长选择 Multiple wavelength options |
| 光电特性 Photoelectric characteristic |
| λp( nm ) | Po( mw ) | VF( V ) | IF( mA ) | Angle ( ° ) |
| 320nm |
20-30mW 70-80mW |
5.0-5.5V 5.5-5.5V |
150mA 500mA |
30°/90° |
| 340nm | 24mW | 3.5-5.0V | 100mA | 30°/90° |
| 365nm | 820-1100mW | 3.3-3.8V | 500mA | 30°/90° |
| 385nm | 900-1200mW | 3.2-3.6V | 500mA | 30°/90° |
| 395nm | 1020-1300mW | 3.2-3.6V | 500mA | 30°/90° |
| 400nm | 480-530mW | 2.1-2.3V | 350mA | 30°/90° |
| 410nm | 550-610mW | 3.1-3.2V | 350mA | 30°/90° |

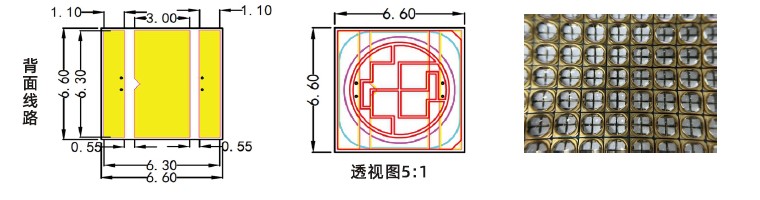

| 尺寸规格 Dimension: 6868 |
|
