NKFG 福机装 UVC LED |
|
| 3535、6868 NF系列 | |
|
|
|
波段范围: 280nm Bandrange: 280nm |
|
|

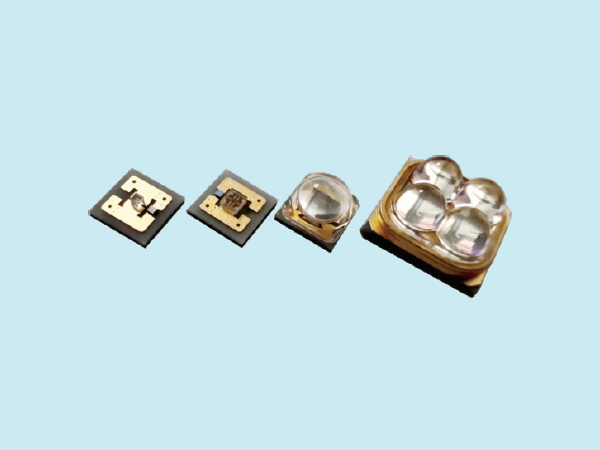

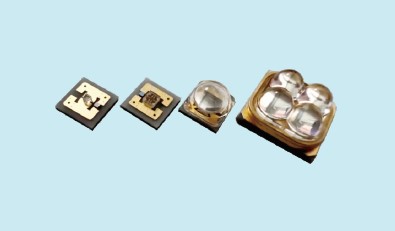

3535、6868 NF系列是NKFG品牌的深紫外线UVCLED，采用四颗芯片组合封装，高功率 发射，发光角度分别有30°、60° 3535、6868 NF series is NKFG brand of deep ultraviolet UVC LED, using four chip combination package,high poweremission, light Angle of 30°、60° |
|
| 特性 Features | 应用 Application | |
| 高光效 High luminous efficiency | 水处理 Water treatment | |
| 高可靠性 High reliability | 空气净化 Air purification | |
| 功耗低 Low power consumption | 表面消毒 Surface disinfection | |
| 长寿命 Long lifespan | 医疗卫生 Medical and health care | |
| 多种波长选择 Multiple wavelength options | 家用电器 Household Electric Appliances | |
| / | 仪器探测 Instrument detection |
| 光电特性 Photoelectric characteristic |
| λp( nm ) | Po( mw ) | VF( V ) | IF( mA ) | Angle ( ° ) |
| 280nm | 28mW | 4.5V-6.5V | 100mA | 140° |
| 280nm | 80mW | 4.5V-7.0V | 350mA | 60°/140° |
| 280nm | 120mW | 4.5V-7.0V | 3500mA | 60°/140° |
| 尺寸规格 Dimension: 3535 |
|
