红外线IR LED发光二极管,其发射的光波长是在人眼不可见的红外范围,具有发射和接收的功能。我们采用硅胶模顶或平凸透镜贴片封装形式,发光角度分别有30°、60°、90°、120°
热线: 0755-27205573
产品详情:

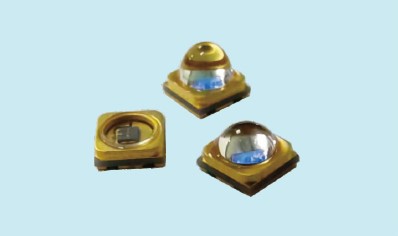

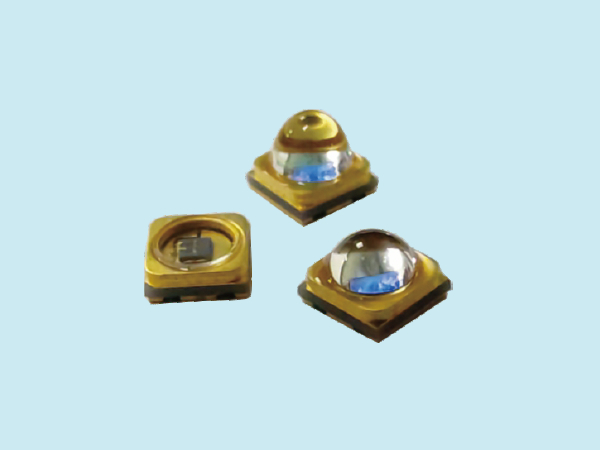

红外线 IR LED
3030、3535、3838 IR系列
波段范围: 780-4000nm
Bandrange: 780-4000nm
红外线IRLED发光二极管,其发射的光波长是在人眼不可见的红外范围,具有发射和接收的功 能。我们采用硅胶模顶或加平凸透镜贴片封装形式,发光角度分别有30°、60°、90°、120°
Infrared lR LED light emitting diode, the wavelength of the emitted light is invisible to the human eye in the infrared range, with the function of transmitting and receiving. We use silicone mold top or flat convexlens patch package form,the light Angle is 30°、60°、90°、120°

特性 Features   应用 Application
不可见 Invisible   植物增长 Plant growth
热能传递 Heat transfer   切割工艺 Cutting technology
穿透性 Penetrability   康复医疗 Rehabilitation medicine
    食品检测 Food testing
    仪器探测 Instrument detection

光电特性 Photoelectric characteristic
λp( nm ) Po( mw ) VF( V ) IF( mA ) Angle ( ° )
810nm 300-360mW 3.0-3.2V 350mA 30°/60°/120°
855nm 200-260mW 1.5-1.7V 350mA 30°/60°/120°
940nm 210-270mW 1.6-1.7V 350mA 30°/60°/120°
975nm 100-120mW 1.3-1.5V 350mA 30°/60°/120°

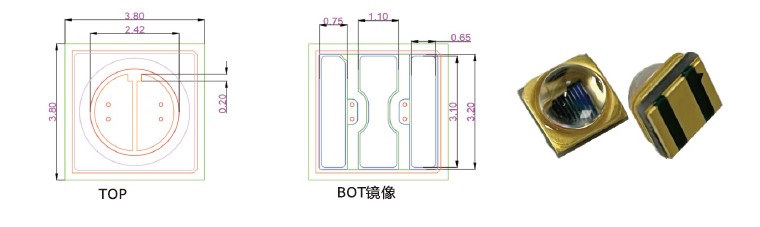

尺寸规格 Dimension: 3838
