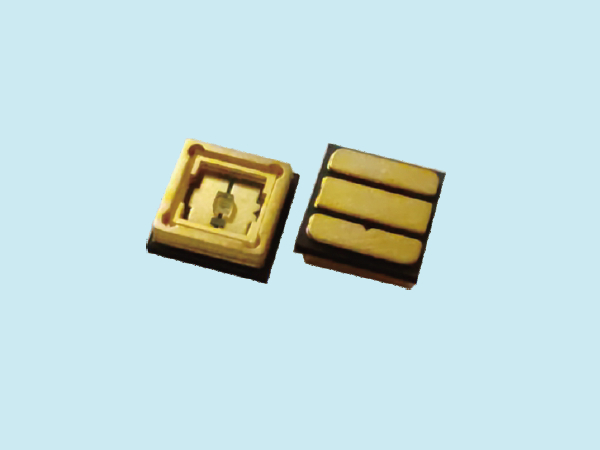

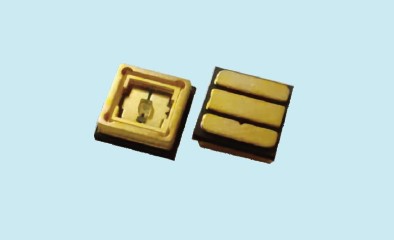

UVC传感器 UV-C Sensor |
|
| DUVC-S3838 | |
|
|
|
波段范围: 280nm Bandrange: 280nm |
|
|
DUVC-S3838是一种可以检测紫外线波段280nm的传感器，具有高光谱灵敏度的光电 极管，封装规格有SMD 3535、3838。光谱检测范围是240-280nm。 DUVC-S3838 is a sensor capable of detecting ultraviolet light in the 280nm wavelength range. featuring a high spectral sensitivity photodiode and packaged in SMD 3535 and 3838 specifications. The spectral detection range is 240-280nm. |
|
| 特性 Features | 应用 Application | |
| 低功耗 Low power consumption | UV消毒监测 UV disinfection monitoring | |
|
VCC电源电压范围: 3V-5.5V VCC power supply voltage range: 3V-5.5V |
火焰探测 Flame detection | |
| 光电特性 Photoelectric characteristic |
| λp( nm ) | Po( mw ) | VF( V ) | IF( mA ) | Angle ( ° ) |
| 280nm | / | / | / | 120° |

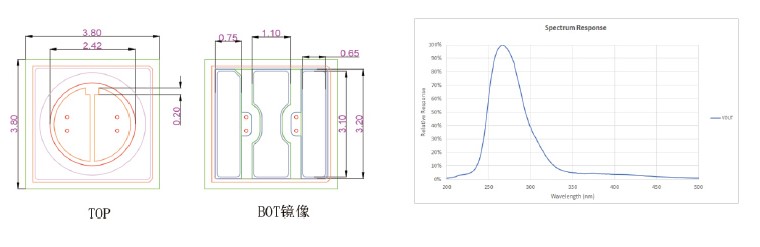

| 尺寸规格 Dimension: 3838 |
|
